Product characteristics: Adopt advanced DSP digital control technology Overall efficiency up to 96% Adopt bidirectional DC design, charging current 1~12A can be freely set on the panel Power factor 0.9 (optional 1.0) Self-set output voltage 208/220/230/240Vac, frequency 50Hz or 60Hz The overall efficiency of ECO mode is more than 98%
Model Technical Data | BZR116B | BZR116L | BZR1110B | BZR1110L | |
Nominal Output capacity | 6KVA/4.8KW | 10KVA/8KW | |||
Rated | Nominal Voltage | 208/220/230/240Vac | |||
AC inpit | Nominal frequency | 50Hz | |||
Input Voltage range | 120~275VAC±5 | ||||
Input frequency | (45~55) ±0.5Hz | ||||
Bypass Voltage | 80VAC×(1±5%) ~285VAC×(1±5%) | ||||
Battery input | Battery Unit voltage | Standard 192VDC (240VDC Optional) | |||
Battery capacity &Number | 12VDC x 16 (20PCS Optional) | ||||
Charge Current | Charge Current 4A (Long Run UPS) | ||||
AC output | Output Voltage | 208/220/230/240Vac | |||
Outpur frequency | 46~54Hz (AC Input Normal) ; 50Hz ± 1% (AC Input Abnormal) | ||||
Wave form | Sine Wave THD < 3% (Linear Load) ; Sine Wave THD < 8% (Non-Linear Load) | ||||
Output power factor | 0.8 | ||||
Overload | 105~125%, Transfer To Bypass After 1 Min | ||||
Communication & Monitoring Function | RS232 (optional 485), Dry Contact, Intelligent Slot (Expandable SNMP, SMS, And Other Monitoring Mode) | ||||

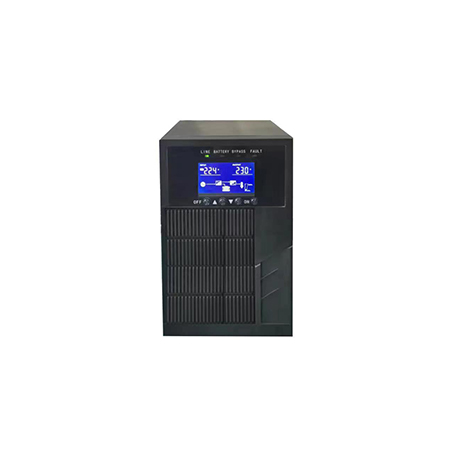

Tower | Net.Weight(KG) | 57 | 12.6 | 59 | 13.2 |
Gross.Weight(KG) | 64 | 15.5 | 65 | 15.5 | |
Unit Dimension (L x W x H) mm | 502x250x610 | 425x190x320 | 425x190x320 | 425x190x320 | |
Carton Dimension ( L x W x H) mm | 650x350x720 | 525x325x460 | 525x325x460 | 525x325x460 | |

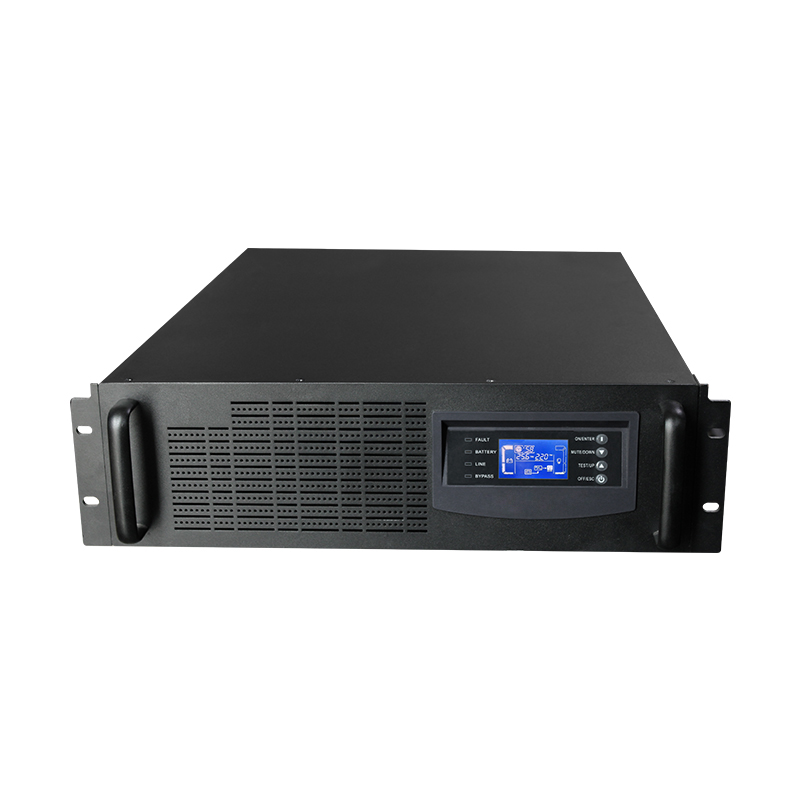

Rack | Weight (kg) | - | 18.5 | - | 19.9 |
Dimension ( W × H × D ) | - | 640x130x440 | - | 640x130x440 | |
Carton Dimension (W x H x D) mm | - | 795x595x265 | - | 795x595x265 | |
