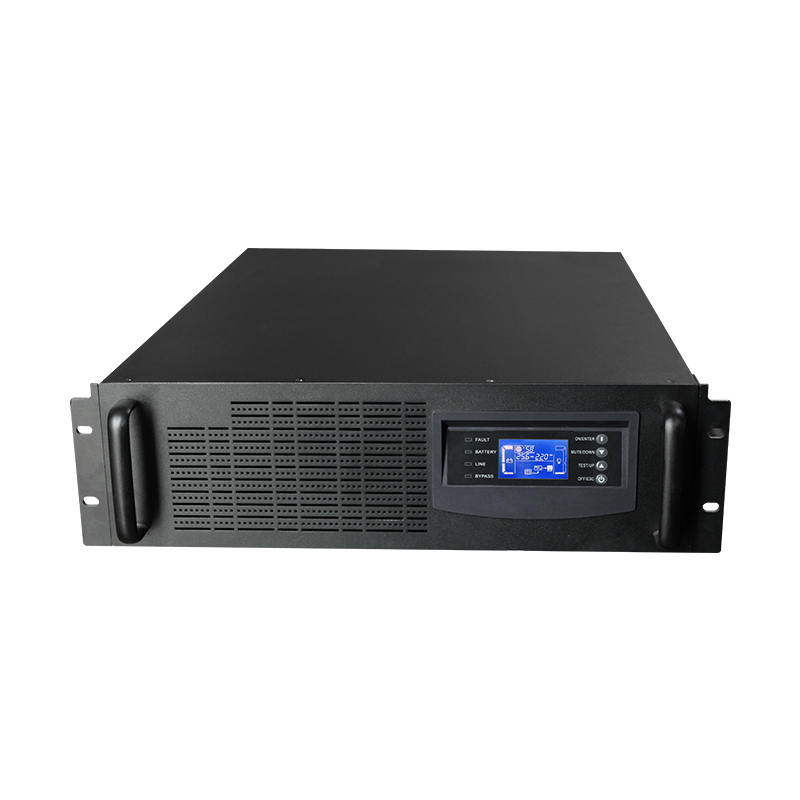

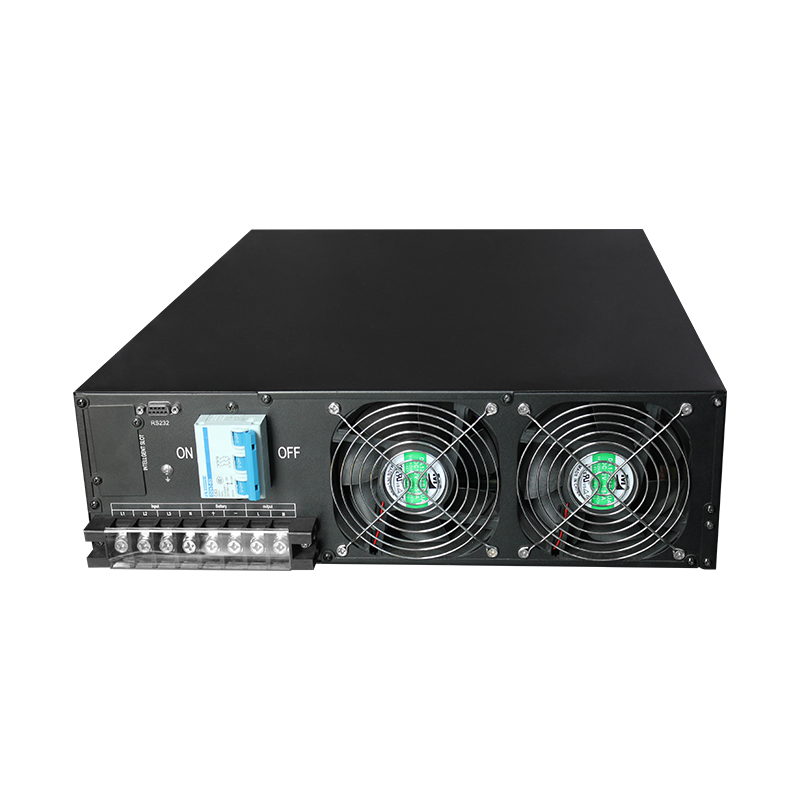

Product characteristics: Adopt advanced DSP digital control technology Overall efficiency up to 96% Adopt bidirectional DC design, charging current 1~12A can be freely set on the panel Power factor 0.8 Self-set output voltage 208/220/230/240Vac, frequency 50Hz or 60Hz The overall efficiency of ECO mode is more than 98%
Model | BZR3110 | BZR3115 | BZR3120 | |
Capacity | VA/W | 10kVA/9kW | 15kVA/13.5kW | 20kVA/18kW |
Machine architecture | Double conversion UPS | |||
Input and output phase | Three-phase input/single-phase output | |||
Input | Wires | 3 phases 3 wires(L1,L2,L3,N)+Ground wire | ||
Voltage range | Single-phase zero fire phase voltage: 90~300VAC / Three-phase line voltage: 150~500VAC | |||
Input frequency range | 40Hz-70Hz | |||
Input power factor | ≥0.9 | |||
Output | Wires | Single-phase 2 wires（L,N)+Ground wire | ||
Voltage | 208/220/230/240VAC | |||
Output voltage accuracy | ±1% | |||
Output frequency | 50/60±4Hz(Phase-locked mode) 50/60Hz±0.1%(Fixed frequency mode) | |||
Wave form | Sine wave | |||
(THDV%) | <2%(Liner load) | |||
<6%(Non-liner load) | ||||
Overload capacity | AC to AC Mode, battery mode（240VDC) : 10 minutes@105%~125% Rated load 30s@126%~150% Rated load 0.5s@>150% Rated load | |||
battery mode（192VDC) : 10秒@102%~110% Rated load 0.5秒@>110% Rated load | ||||
Efficiency | AC to AC Mode | >94% | ||
Battery Mode | 192VDC: >92% / 240VDC: >93% | |||
battery and charger | Battery voltage/Quantity | 192VDC/240VDC | ||
Batery capacity | External battery decides | |||
Fallback time | ||||
Float voltage | 227.2V(3.55x64s) / 284V(3.55x80s) The charging voltage can be customized according to the customer's battery | |||
Charging current | Long-life machine (external battery):4A | |||

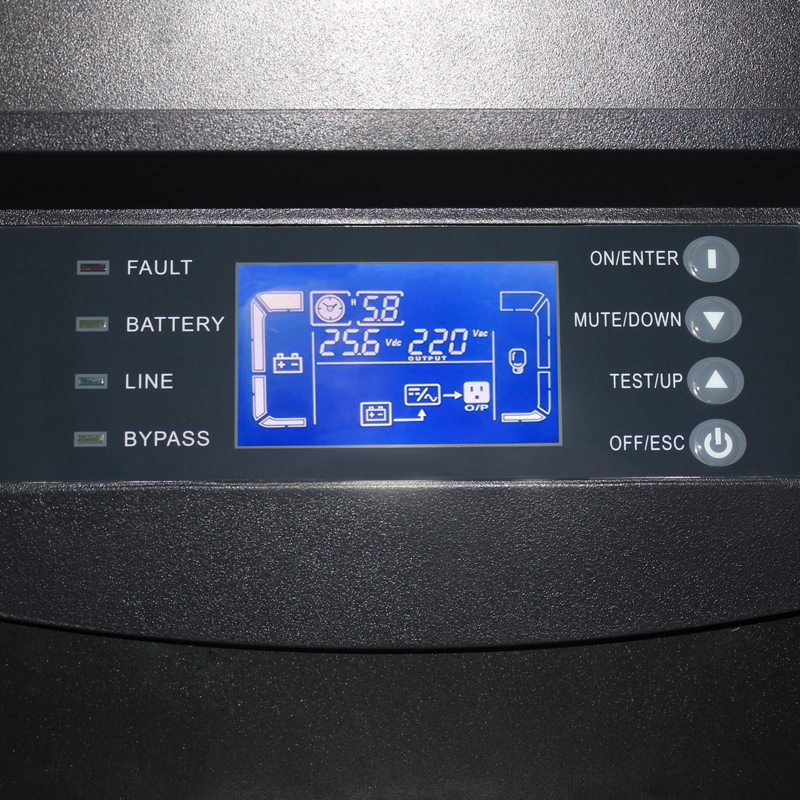

Hmi | LCD display screen | Display input and output voltage voltage, frequency, load percentage, operating mode, machine status | ||
Communication interface | 1. Standard intelligent network monitoring card, support PC, mobile phone remote monitoring 2. Optional RS232 communication | |||
Environment | Working temperature range | 0~40oC | ||
Working humidity range | 0-98%（non-condensing） | |||
Noise | <55dB @ 1 meters | |||
Physical appearance | Dimension | 3 input,1 output -10K Tower: 190（wide）x340（high）x528（deep）MM 3 input,1 output-10K Rack：3U 438(wide）x132（high）x530（deep）MM 3 input,1 output-15K~20K Tower: 238（wide）x528（high)x555（deep）MM 3 input,1 output-15K~20K Rack:4U 438(wide）x176（high）x530（deep)MM | ||
Model | BZR3110 | BZR3115 | BZR3120 | |
Capacity | VA/W | 10kVA/9kW | 15kVA/13.5kW | 20kVA/18kW |
Machine architecture | Double conversion UPS | |||
Input and output phase | Three-phase input/single-phase output | |||
Input | Wires | 3 phases 3 wires(L1,L2,L3,N)+Ground wire | ||
Voltage range | Single-phase zero fire phase voltage: 90~300VAC / Three-phase line voltage: 150~500VAC | |||
Input frequency range | 40Hz-70Hz | |||
Input power factor | ≥0.9 | |||
Output | Wires | Single-phase 2 wires（L,N)+Ground wire | ||
Voltage | 208/220/230/240VAC | |||
Output voltage accuracy | ±1% | |||
Output frequency | 50/60±4Hz(Phase-locked mode) 50/60Hz±0.1%(Fixed frequency mode) | |||
Wave form | Sine wave | |||
(THDV%) | <2%(Liner load) | |||
<6%(Non-liner load) | ||||
Overload capacity | AC to AC Mode, battery mode（240VDC) : 10 minutes@105%~125% Rated load 30s@126%~150% Rated load 0.5s@>150% Rated load | |||
battery mode（192VDC) : 10秒@102%~110% Rated load 0.5秒@>110% Rated load | ||||
Efficiency | AC to AC Mode | >94% | ||
Battery Mode | 192VDC: >92% / 240VDC: >93% | |||
battery and charger | Battery voltage/Quantity | 192VDC/240VDC | ||
Batery capacity | External battery decides | |||
Fallback time | ||||
Float voltage | 227.2V(3.55x64s) / 284V(3.55x80s) The charging voltage can be customized according to the customer's battery | |||
Charging current | Long-life machine (external battery):4A | |||
Hmi | LCD display screen | Display input and output voltage voltage, frequency, load percentage, operating mode, machine status | ||
Communication interface | 1. Standard intelligent network monitoring card, support PC, mobile phone remote monitoring 2. Optional RS232 communication | |||
Environment | Working temperature range | 0~40oC | ||
Working humidity range | 0-98%（non-condensing） | |||
Noise | <55dB @ 1 meters | |||
Physical appearance | Dimension | 3 input,1 output -10K Tower: 190（wide）x340（high）x528（deep）MM 3 input,1 output-10K Rack：3U 438(wide）x132（high）x530（deep）MM 3 input,1 output-15K~20K Tower: 238（wide）x528（high)x555（deep）MM 3 input,1 output-15K~20K Rack:4U 438(wide）x176（high）x530（deep)MM | ||
