Product characteristics: Adopt advanced DSP digital control technology Overall efficiency up to 96% Adopt bidirectional DC design, charging current 1~12A can be freely set on the panel Power factor 0.9 (optional 1.0) Self-set output voltage 208/220/230/240Vac, frequency 50Hz or 60Hz The overall efficiency of ECO mode is more than 98%
Model Technical characteristics and parameter | BZH111B | BZH111L | BZH112B | BZH112L | BZH113B | BZH113L | |
Capacity | 1000VA/900W | 2000VA/1800W | 3000VA/2700W | ||||
Input | Voltage range | 115~300VAC±5 | |||||
Frequency range | （45~55）±0.5Hz | ||||||
Bypass voltage | 80VAC×(1±5%)～285VAC×(1±5%) | ||||||
Battery input | Battery voltage | 24V | 36V | 48V | 72V | 72V | 96V |
Battery mode | Internal | External | Internal | External | Internal | External | |
Fallback time (half/full) | Half load≥10 minutes,Full load≥5 minutes(Standard type) | ||||||
The maximum inrush current is input at power-on | < Rated current 150% | ||||||
Battery charging time | 5 hours to 90% （Standard type） Depends on external battery pack capacity (long-lasting) | ||||||
Output | Output voltage | 220Vac±1%（Inverter output） | |||||
Output frequency | 50±5Hz（AC input is normal） 50Hz±1%（AC input is abnormal） | ||||||
Wave form | sinusoidTHD <3%（Liner load） sinusoidTHD <8%（Non-liner load） | ||||||
Power fator | 0.9 | ||||||
Overload capacity | The 130% load lasts for not less than 30s, and the recovery point is 90% load | ||||||
Crest Ratio | 3：1 | ||||||
AC，battery switching time | 0ms | ||||||

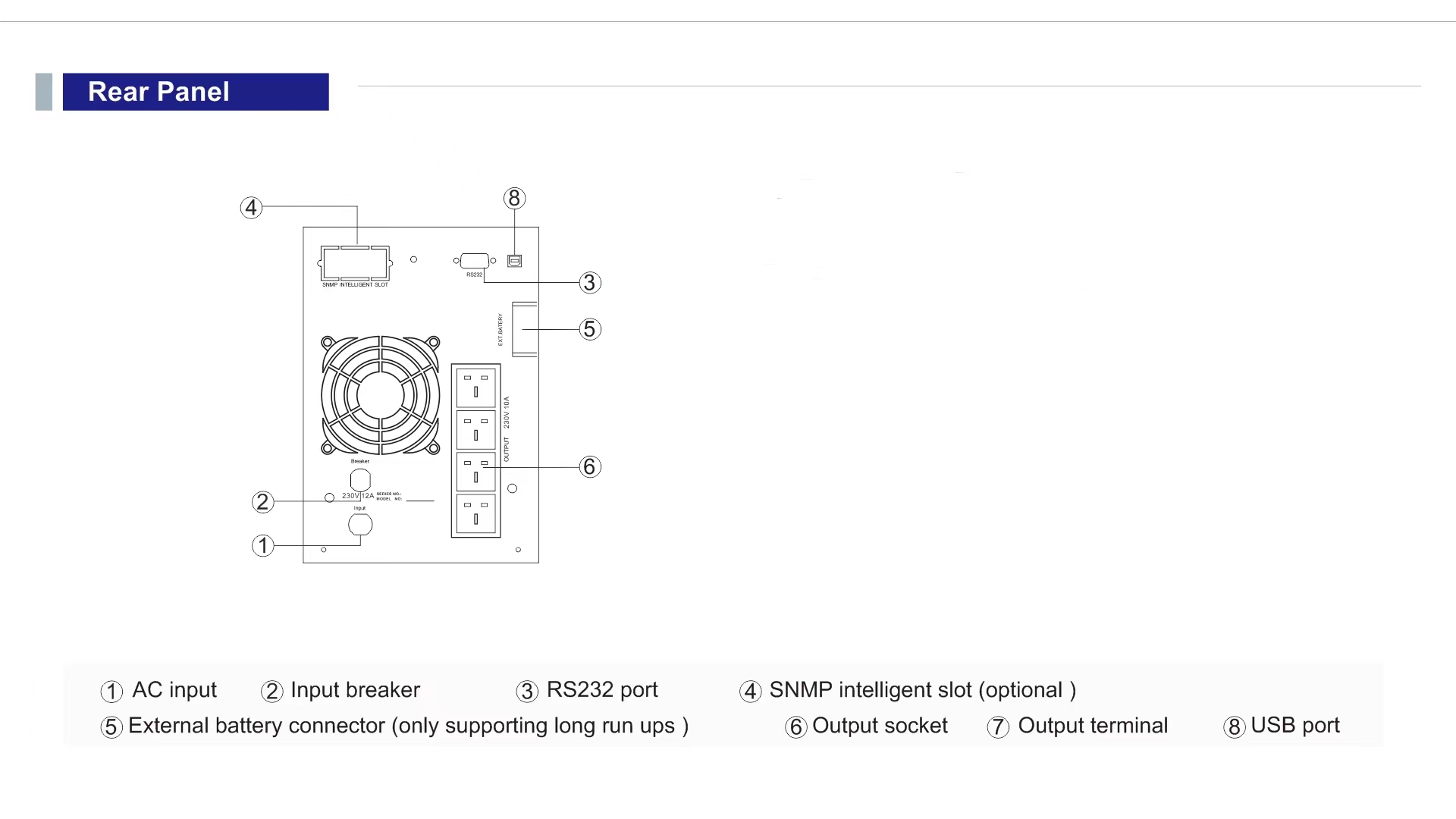

Tower | Communication and monitoring functions | RS232 (Transferable485), dry node, smart slot (expandable SNMP, SMS and other monitoring methods) | |||||
Weight（KG） | 8.5 | 5 | 17 | 9.9 | 22.5 | 10.5 | |
Dimension（W×D×H） | 355×145×225 | 425×190×320 | |||||
Rack | Weight（KG） | 10.8 | 7.5 | 19.5 | 10.5 | 24.5 | 12.5 |
Dimension（W×D×H） | 460×440×90 | ||||||
Installation method | Rack and wall mounting methods are compatible | ||||||
