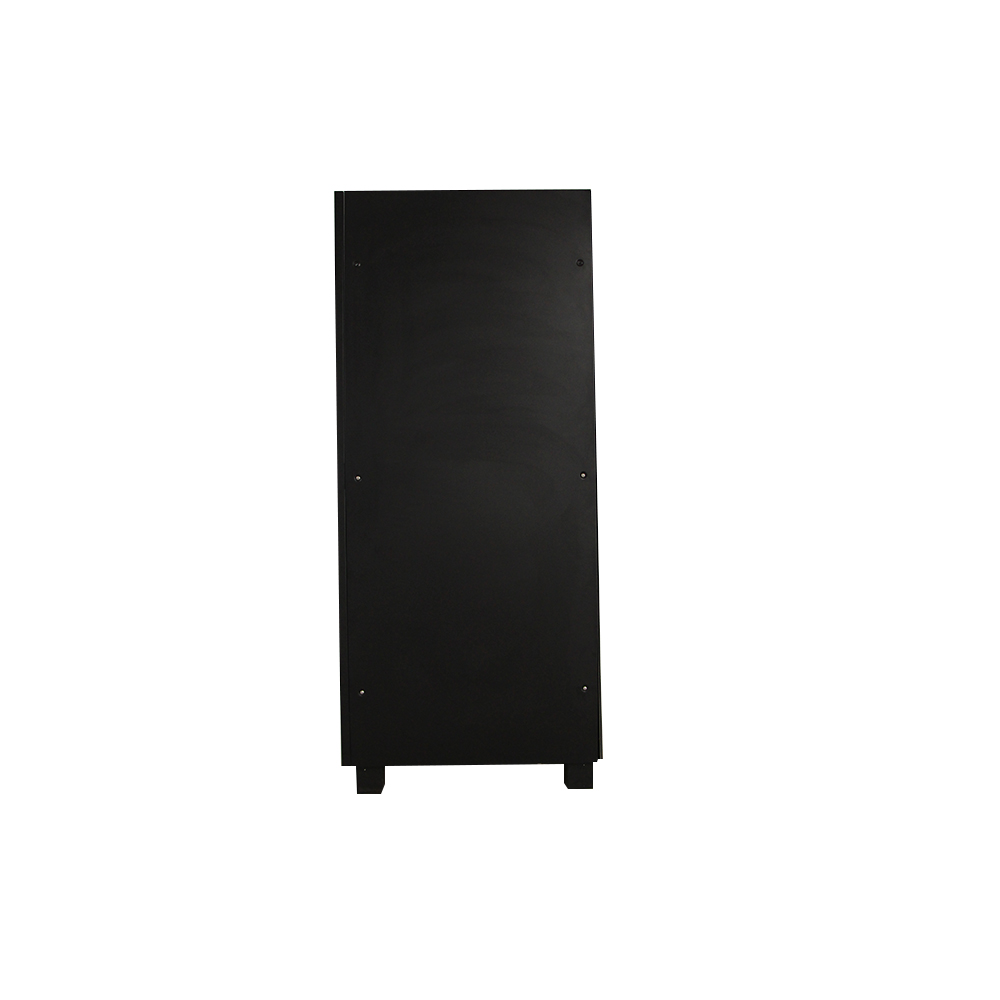

Product characteristics: High-efficiency online dual-transformer technology, with efficiency of more than 96% under 50% load This series of modular UPS adopts centralized bypass power supply, which improves the power supply capacity of the bypass High expansibility and complete output power factor can provide 100% output power (KVA=kW) The battery voltage can be set from 30 to 50 in each group High overload capacity: 110% of overload supports 60 minutes, 120% supports 10 minutes, and 150% supports 1 minute. The EPO emergency safety shutdown function can be externally connected with the EPO button, and the remote emergency shutdown (REPO) function can also be set.
Model | BSM33200 | BSM33300 | BSM33400 | BSM33500 | BSM33600 | |||||
Rated capacity | Cabinet（VA/W） | 50k-200k / 50k-200k | 50k-300k / 50k-300k | 50k-400k / 50k-400k | 50k-500k / 50k-500k | 50k-600k / 50k-600k | ||||
Module（VA/W） | 50k / 50k | |||||||||
Max module quantity | 4 | 6 | 8 | 10 | 12 | |||||
Input parameter | ||||||||||
MAIN INPUT | Rated voltage(Vac) | 380/400/415 | ||||||||
Input aoltage range(Vac) | 138～485Vac；305～485Vac No derating，138～305Vac Linear derating | |||||||||
Wiring system | 3Ph+5 wires | |||||||||
Input frequency rangeHz) | 40-70 | |||||||||
Power factor | ≥0.99 | |||||||||
(THDi) | ≤3% (100% liner load) | |||||||||
BYPASS INPUT | Rated input voltage(Vac) | 380/400/415 | ||||||||
Input aoltage range(Vac) | 220 upper limit：25%（Optional+10%、+15%、+20%）230upper limit：20%（Optional+10%、+15%） 240upper limit：15%（Optional+10%）lower limit：-45%(Optional-10%、-20%、-30%) | |||||||||
Wiring system | 3Ph+5 wires | |||||||||
Bypass synchronous trackibg range (Hz) | ±10% | |||||||||
Power Walking In | Support | |||||||||
Bypass reverse irrigation | Support | |||||||||
Generator connection | Support | |||||||||
Output specifications | ||||||||||
Voltage(Vac) | 380/400/415±1% | |||||||||
Power factor | 1 | |||||||||
Frequency(Hz) | AC mode | ±1%/±2%/±4%/±5%/±10% can be set | ||||||||
Battery mode | (50/60±0.1%)Hz | |||||||||
Waveform | Sinusoid | |||||||||
Load crest | 3:1 | |||||||||
(THDV) | ≤2% (100%liner load)；≤3% (100%non-liner load) | |||||||||
Transfer time(ms) | 0 | |||||||||
Overall machine efficiency(%) | 95.5% | |||||||||
Oveload ability | 110% load，keep 60min and then turn to the bypass；125%load，keep 10min and then turn to the bypass；150%load，keep 1min and then turn to the bypass； | |||||||||
Battery | ||||||||||
Maximum module charging current(A) | 20 | |||||||||
Battery voltage | Optional voltage: ±180V/±192V/±204V/±216V/±228V/±240/±252/±264/±276/±288/±300Vdc（30/32/34/36/38/40/42/44/46/48/50knots）；（30 knots ~ 50 knots optional, default 36 knots, 36 knots and 50 knots output power is not derated; Output power is derated to 0.9 at 32 and 34 cells, and 0.8 at 30 cells) | |||||||||
Environment | ||||||||||
Work temperature | 0℃～40℃ | |||||||||
Storage temparature | -25℃～55℃（Non-batterry） | |||||||||
Humidity | 0～95%（non-condensing） | |||||||||
Work altitude | < 1500m（More than 1500m shall be used in accordance with the provisions of GB/T 3859.2） | |||||||||
Noise（dB）（1m meter） | <65dB | <68dB | <70dB | |||||||
Other functions | ||||||||||
Caution function | Out put overload,mains power abnormality,UPS failure,battery undervoltage,etc | |||||||||
Protection function | Output short cicuit,oveload,over-temperature,battery undervoltage,output over-undervoltage | |||||||||
Communication function | Standard configuration:RS232 Optional:RS484/SNMP/Dry contact | |||||||||
Mechanical properties | ||||||||||
Dimensions （W×D×H）(mm) | UPS Cabinet | 600×850×2000 | 1200×850×2000 | |||||||
Module | 440×620×130 | |||||||||
Net weight(kg) | UPS Cabinet | 230 | 260 | 600 | 650 | 720 | ||||
Module | 32 | |||||||||
Executive standards | YD/T 2165-2010 | |||||||||
